Bevelers

Whatever needs you have regarding beveling, we have the solution!

All sizes, from small hand machines to big stations: Copier, Nitto-Kohki, ERM, Cevisa and the ID/OD-program for pipe beveling.

If you have pipes in big volumes and are searching for solutions regarding Beveling, Rollgrooving, Bending or Welding. Tendek together with COPIER, from Holland, can assist you.

BEAVER 24 CNC, The whole machine is operated from the touch screen, pipes from Ø200 to 615 mm, and can handle unlimited wall thickness.

BEAVER 24S AUT - Stationary beveling machine:
	ID-Tracker The ID copying system follows the inner diameter of the pipe with spring loaded rollers and keep track of the out of roundess. In this way and accurate land can be machined on the bevel.
The ROTOWELD - Automated Pipe Spool Welding Machine:
Constant high quality welds 400% productivity increase 90% Arc-On-Time 5x faster than manual SMAW or GTAW
GM2 Groove Master, Pipe roll grooving (up to 9 mm wall):

COPIER Tube bending machines, portable and stationary.

Nitto-Kohki from Japan

Vibration: "TEMA-value"= Measured from reality (see front page article).

Click on the picture to get machine specifications!

ECB-0203

►Electric radial chamfering tool.

►Smoothly chamfering straight and curved edges.

►Cutting blade with 4-sides enables a good economy.

EMB-0307B

►Handy electric chamfering tool.

►Chamfering up to 3C stainless steel, and 7C on mild steel.

►Cutting blade with 4-sides enables a good economy.

MB-03A

►Handy electric chamfering tool.

►Compact and light for speed chamfering.

►Cutting blade with 4-sides enables a good economy.

AMBL-0307

►A small air beveler which makes the big jobs too.

►Beveling angle can be adjusted to any desired position at 15˚～45˚.

►TEMA=4,16m/s²

CB-01

►Small and lightweight, easy to handle.

►Only requires a 6.8 mm diameter hole for chamfering

►Two 3-sided indexable inserts provide a cost effective way to get a smooth, chatter free finish.

CB-02

►Pneumatic radial chamfering tool.

►Lets you chamfer easily and smoothly no matter what the curve line is.

►Precisely adjust chamfer dimensions with accessory gauge.

►TEMA=4,62m/s²

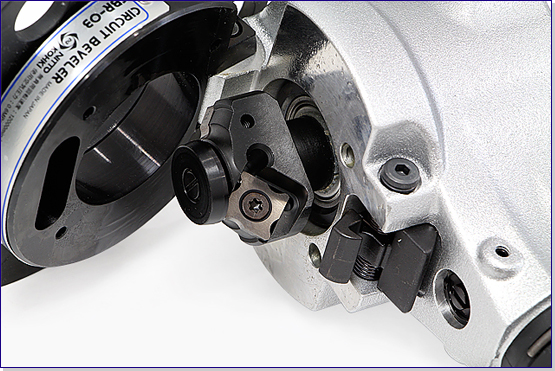

CBR-03

►For bridge and shipbuilding applications.

►Dual cutting head with 4 radius surfaces per tip, and quick change base.

►Three options for the handle position.

►TEMA=1,91m/s²

Click on the picture to enlarge!

ERM, produced in Finland by Tendek ky!

Click on the picture for manual and exploded view!

ERM-34S and ERM-34 for different applications:

►Chamfering range 0-10mm. (with extra tools 0-20mm)

►Radius beveling 3 or 4mm.

►Chamfering pipes.

►Chamfering pipe curves.

►Chamfering lower side plates.

►Chamfering curved plates.

►Chamfering thick aluminum, brass, copper, plastic and composites.

ERM Beveling Stations:

Cevisa from Spain:

CHP-12	Specifications:
	Chamfer angel: 22,5°- 25°- 30°- 35°- 37,5°- 45° Chamfer depth: 0 - 12 mm No-load speed: 1 400 rpm Plate thickness: 6 - 40 mm Plate width, minimum: 55 mm (There is special devices for minimum plate width of 25,32 and 40 mm.) Chamfering speed: 2,6 m/min Motor: 3 hp Wheight: 65 kg Material: Mild steel, Stainless steel
CHP-12G	Specifications:
	Chamfer angel: 22,5°- 25°- 30°- 35°- 37,5°- 45° Chamfer depth: 0 - 12 mm No-load speed: 1 400 rpm Plate thickness: 6 - 30 mm Plate width, minimum: 55 mm (There is special devices for minimum plate width of 25,32 and 40 mm.) Pipes, minimum inner Ø: 100 mm Chamfering speed: 2,6 m/min Motor: 3 hp Wheight: 110 kg Material: Mild steel, Stainless steel
CHP-12G-REV	Specifications:
	Chamfer angel: 22,5°- 25°- 30°- 35°- 37,5°- 45° Chamfer depth: 0 - 12 mm No-load speed: 1 400 rpm Plate thickness: 6 - 30 mm Plate width, minimum: 55 mm (There is special devices for minimum plate width of 25,32 and 40 mm.) Pipes, minimum inner Ø: 100 mm Chamfering speed: 2,6 m/min Motor: 3 hp Wheight: 250 kg Material: Mild steel, Stainless steel
CHP-21G	Specifications:
	Chamfer angel: 22,5°- 25°- 30°- 35°- 37,5°- 45° Chamfer depth: 0 - 20 mm No-load speed: 1 400 rpm Plate thickness: 9 - 50 mm Plate width, minimum: 85 mm Pipes, minimum inner Ø: 150 mm Chamfering speed: 1,7 m/min Motor: 4 hp Wheight: 370 kg Material: Mild steel, Stainless steel
CHP-21G-INV	Specifications:
	Chamfer angel: 22,5°- 25°- 30°- 35°- 37,5°- 45° Chamfer depth: 0 - 20 mm No-load speed: 1 400 rpm Plate thickness: 9 - 50 mm Plate width, minimum: 85 mm Pipes, minimum inner Ø: 150 mm Chamfering speed: 1,7 m/min Motor: 4 hp Wheight: 430 kg Material: Mild steel, Stainless steel

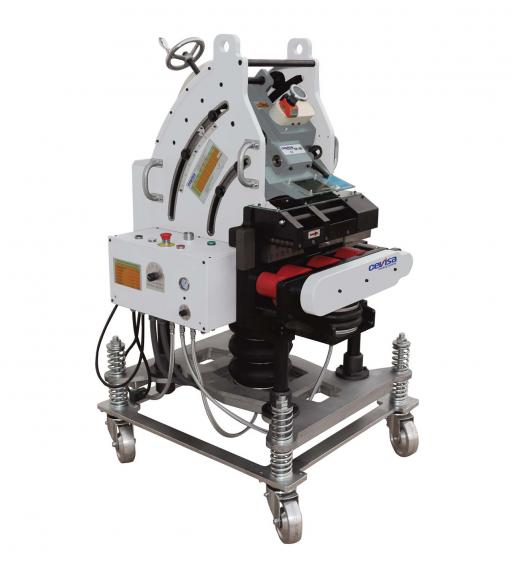

CHP-60G	Specifications:
	Chamfer angel: 15°- 70° Chamfer depth: 0 - 60 mm (28mm/run) Milling head: Ø80 mm Inserts: 7 pcs(ADMX-1606) Chamfering speed: 500 mm/min Plate thickness: 10 - 100 mm Plate width, minimum: 100 mm Working height: 760 - 940 mm Motor: 5 hp - 3,8kW Weight: 800 kg Working pressure: 4 bar Material: Mild steel, Stainless steel and duplex
