Computerized Power Torque setters, followed by Impact Wrenches from KUKEN and CAP!



Quality from Japan, Computerized Power Torque setters, highly advanced & accurate fastening-tools for torques between 50 Nm to 5000 Nm.

Almost no vibrations at all, silent and easy to use, ensures a healthy work environment!

Vibration: "TEMA-value"= Measured from reality (see front page article).

E-Catalogue with all the products:

Different models of "Reaction arms" for the PTS-machines can be found on the page with exploded views(letter "P")

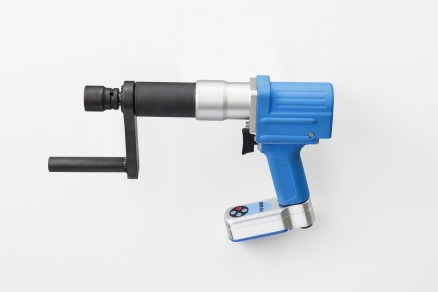

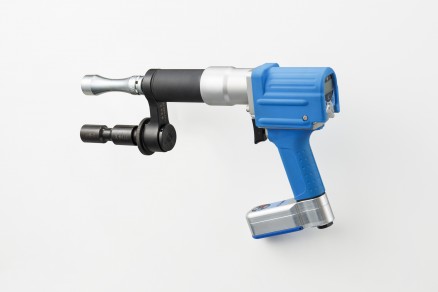

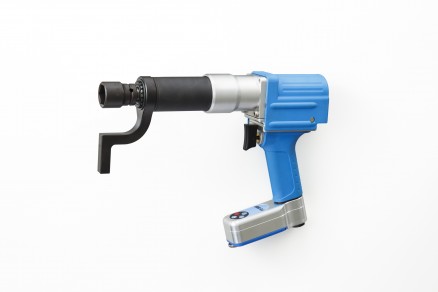

HOT NEWS!  PTS-150EX  HOT NEWS!







Torque Range Nm 50 - 150
Drive Size mm (inch) 12.7 (1/2)
Torque Setting By Step Nm 1
Length w/o Socket mm (inch) 277 (10-15/16)
Weight w/o Socket kg (lbs) 2.5 (5.5)
Free rotation speed rpm 120
Air consumption (no load) m³/min (cfm) 0.23 (8.1)
Noise level db (A) 78
Hose size mm (inch) 6.5 (1/4)
Vibration m/s² 0.1

             FEATURES

  • Extremely low vibration and low noise level.
  • Enables to set 3 different torques to quickly change applications.
  • Batch management (Up to 99 bolts).
  • Providing various reaction force absorbers for different applications.
  • Enables to indicate results by a buzzer sound.
PTS-450/600EX PTS-800EX





Torque Range Nm 140-450/600
Drive Size mm (inch) 19.0 (3/4)
Torque Setting By Step Nm 1
Length w/o Socket mm (inch) 354 (13-15/16)
Weight w/o Socket kg (lbs) 5.3 (11.6)
Free rotation speed rpm 100
Air consumption (no load) m³/min (cfm) 0.38 (13.5)
Noise level db (A) 78
Hose size mm (inch) 6.5 (1/4)
Vibration m/s² 0.1
Torque Range Nm 400 - 800
Drive Size mm (inch) 25.4 (1)
Torque Setting By Step Nm 1
Length w/o Socket mm (inch) 404 (16)
Weight w/o Socket kg (lbs) 6.6 (14.5)
Free rotation speed rpm 95
Air consumption (no load) m³/min (cfm) 0.38 (13.5)
Noise level db (A) 78
Hose size mm (inch) 6.5 (1/4)
Vibration m/s² 0.2 TEMA=2.2

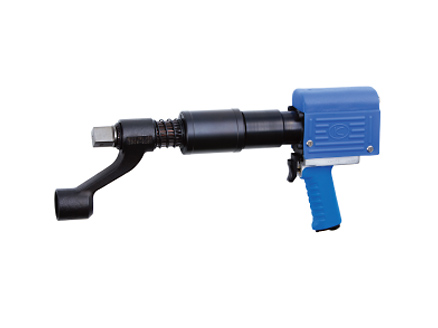

PTS-600EX-L PTS-800EX-L



Torque Range Nm 140-600
Drive Size mm (inch) 19.0 (3/4)
Torque Setting By Step Nm 1
Length w/o Socket mm (inch) 454 (17-7/8)
Weight w/o Socket kg (lbs) 6.1 (13.3)
Free rotation speed rpm 100
Air consumption (no load) m³/min (cfm) 0.38 (13.5)
Noise level db (A) 78
Hose size mm (inch) 6.5 (1/4)
Vibration m/s² 0.1
Torque Range Nm 400 - 800
Drive Size mm (inch) 25.4 (1)
Torque Setting By Step Nm 1
Length w/o Socket mm (inch) 474 (18-3/4)
Weight w/o Socket kg (lbs) 6.9 (15.2)
Free rotation speed rpm 90
Air consumption (no load) m³/min (cfm) 0.38 (13.5)
Noise level db (A) 78
Hose size mm (inch) 9.5 (3/8)
Vibration m/s² 0.2
PTS-800E PTS-1000E





Torqu​e Range Nm 400-800
Torque-setting by step Nm 10
Length w/o socket mm (inch) 562 (22-1/8)
Weight w/o socket kg (lbs) 11.5 (25.3)
Free rotation speed rpm 125
Air consumption (no load) m³/min (cfm) 0.56 (19.9)
Noise level db (A) 84
Hose size mm (inch) 9.5 (3/8)
Vibration m/s² 0.2
Torque Range Nm 400-1000
Torque-setting by step Nm 10
Length w/o socket mm (inch) 635 (25)
Weight w/o socket kg (lbs) 15 (33)
Free rotation speed rpm 135
Air consumption (no load) m³/min (cfm) 0.6 (21.4)
Noise level db (A) 78
Hose size mm (inch) 12 (1/2)
Vibration m/s² 0.2

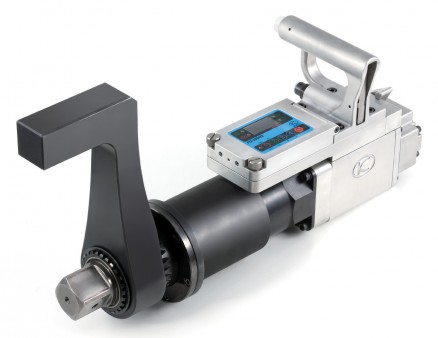

PTS-1000ES PTS-3000ES





Torque Range Nm 400-1000
Drive Size mm (inch) 25.4 (1)
Torque Setting By Step Nm 10
Length w/o Socket mm (inch) 485 (19)
Weight w/o Socket kg (lbs) 11.1 (24.4)
Free Rotation Speed rpm 135
Air Consumption (no load) m3/min (cfm) 0.6 (21.4)
Noise level dB(A) 84
Hose Size mm (inch) 12 (1/2)
Vibration m/s² 0.4
Torque Range Nm 1000-3000
Drive Size mm (inch) 38 (1-1/2)
Torque Setting By Ste Nm 10
Length w/o Socket mm (inch) 497 (19-9/16)
Weight w/o Socket kg (lbs) 14.9 (32.5)
Free Rotation Speed rpm 95
Air Consumption (no load) m3/min (cfm) 0.57 (20)
Noise level dB(A) 81
Hose Size mm (inch) 12 (1/2)
Vibration m/s² 0.9
PTS-5000ES

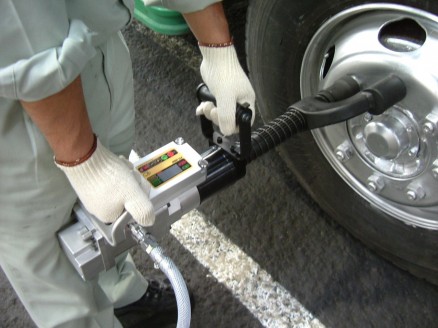

 New age for wheel nut setting work of heavy vehicle

 Kuken's flagship models - PTS-800E/1000E



Torque Range Nm 2000-5000
Drive Size mm (inch) 38 (1-1/2)
Torque Setting By Step Nm 10
Length w/o Socket mm (inch) 538 (21-1/6)
Weight w/o Socket kg (lbs) 21.3 (46.9)
Free Rotation Speed rpm 60
Air Consumption (no load) m3/min (cfm) 0.57 (20)
Noise level dB(A) 80
Hose Size mm (inch) 12.7 (1/2)
Vibration m/s² 0.2
The performance figures are at 0.62MPa(Pe) (90P.S.I.) air pressure, and no load.


IMPACT WRENCHES:

Vibration: "TEMA-value"= Measured from reality (see front page article).

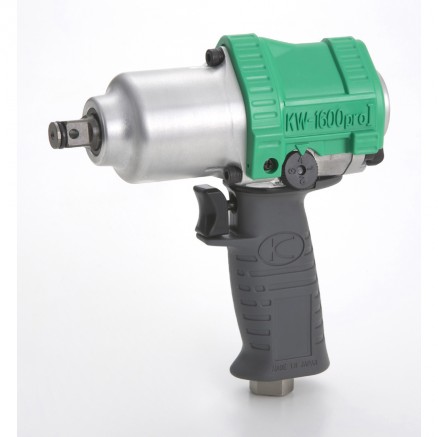

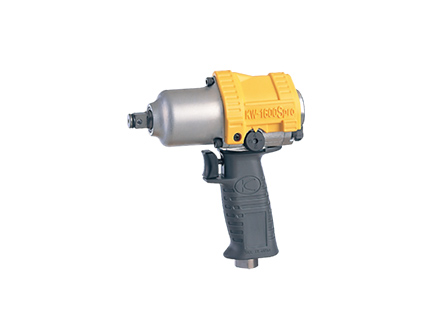

KW-1600 S-PRO KW-1600 PRO-I

Socket Insert Sq.  mm (inch)  12.7 (1/2)
Capacity Bolt Diameter  mm (inch)  16 (5/8)
Maximum Torque  Nm  490
Length w/o Socket  mm (inch)  165 (6-1/2)
Weight w/o Socket  kg (lbs)  1.46 (3.2)
Free Rotation Speed  rpm  8000
Air Consumption   m3/min (cfm)  0.3 (10.7)
Noise Level  dB(A)  78
Hose Inlet Bushing  -  Rc1/4
Applicable Compressor  kW  2.2
Hose Inside Diameter  mm (inch)  6.3 (1/4)
Vibration  m/s²  2.8
Socket Insert Sq.  mm (inch)  12.7 (1/2)
Capacity Bolt Diameter  mm (inch)  16 (5/8)
Maximum Torque  Nm  490
Length w/o Socket  mm (inch)  170 (6-7/8)
Weight w/o Socket  kg (lbs)  1.65 (3.5)
Free Rotation Speed  rpm  8000
Air Consumption   m3/min (cfm)  0.33 (11.8)
Noise Level  dB(A)  78
Hose Inlet Bushing  -  Rc1/4
Applicable Compressor  kW  2.2
Hose Inside Diameter  mm (inch)  6.3 (1/4)
Vibration  m/s²  2.4

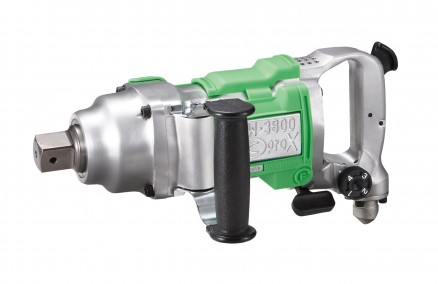

KW-2500 PRO NEW! KW-3800 PRO-XG

Socket Insert Sq.  mm (inch)  19 (3/4)
Capacity Bolt Diameter  mm (inch)  25.4 (1)
Maximum Torque  Nm  1150
Length w/o Socket  mm (inch)  219 (8-5/8)
Weight w/o Socket  kg (lbs)  4.2 (9.2)
Free Rotation Speed  rpm  4500
Air Consumption   m3/min (cfm)  0.45 (16)
Noise Level  dB(A)  85
Hose Inlet Bushing  -  Rc1/4
ApplicableCompressor   kW  3.75
Hose Inside Diameter  mm (inch)  9.5 (3/8)
Vibration  m/s²  3.9 TEMA=5,24
Socket Insert Sq.  mm (inch)  25.4 (1)
Capacity Bolt Diameter  mm (inch)  38 (1-1/2)
Rec. Torque Range  Nm  300-1380
Length w/o Socket  mm (inch)  358 (14-1/8)
Weight w/o Socket  kg (lbs)  6.4 (14.1)
Free Rotation Speed  rpm  4500
Air Consumption  -  -
Noise Level  -  -
Hose Inlet Bushing  -  -
ApplicableCompressor  -  -
Hose Inside Diameter  mm (inch)  9.5 (3/8)
Vibration (KW-3800PRO-G)  m/s²  6.3 TEMA=6,22
KW-3800 PRO-GL KW-4500 GL

Socket Insert Sq.  mm (inch)  25.4 (1)
Capacity Bolt Diameter  mm (inch)  38 (1-1/2)
Maximum Torque  Nm  1800
Length w/o Socket  mm (inch)  488 (19-1/4)
Weight w/o Socket  kg (lbs)  6.9 (15.2)
Free Rotation Speed  rpm  4200
Air Consumption  m3/min (cfm)  0.60 (21.4)
Noise Level  dB(A)  86
Hose Inlet Bushing  -  Rc3/8
Applicable Compressor  kW  7.5
Hose Inside Diameter  mm (inch)  9.5 (3/8)
Vibration  m/s²  6.6
Socket Insert Sq.  mm (inch)  25.4 (1)
Capacity Bolt Diameter  mm (inch)  45 (1-3/4)
Maximum Torque  Nm  2450
Length w/o Socket  mm (inch)  531 (20-7/8)
Weight w/o Socket  kg (lbs)  11.6 (25.5)
Free Rotation Speed  rpm  3700
Air Consumption   m3/min (cfm)  0.75 (26.7)
Noise Level  dB(A)  98
Hose Inlet Bushing  -  Rc1/2
Applicable Compressor  kW  7.5
Hose Inside Diameter  mm (inch)  12.7 (1/2)
Vibration  m/s²  6.2
KW-5000 G NEW! KW-T160V EVO



Socket Insert Sq. mm (inch) 38 (1-1/2)
Capacity Bolt Diameter mm (inch) 50 (2)
Maximum Torque Nm 3500
Length w/o Socket mm (inch) 473 (18-11/16)
Weight w/o Socket kg (lbs) 16 (35.2)
Free Rotation Speed rpm 3000
Air Consumption  m3/min (cfm) 0.82 (29.2)
Noise Level dB(A) 99
  - Rc1/2
Applicable Compressor kW 7.5
Hose Inside Diameter mm (inch) 13 (1/2)
Vibration m/s² 8.5
Socket Insert Sq. mm (inch) 12.7 (1/2)
Recommended Torque Range Nm 100-400
Capacity Bolt Diameter mm (inch) 16 (5/8)
Length w/o Socket mm (inch) 171 (6-3/4)
Weight w/o Socket kg (lbs) 1.5 (3.3)
Free Rotation Speed rpm 6300
Maximum Torque Nm 660
Air Consumption (no load) m3/min (cfm) 0.26 (9.2)
Hose size mm (inch) 6.3 (1/4)
Noise level dB(A) 78
Hose Inlet Bushing - Rc1/4
Vibration m/s² 2.9
KR-133 A KR-183

Capacity Bolt Diameter mm (inch) 10 (3/8)
Maximum Torque Nm 20
Length mm (inch) 170 (6-7/8)
Weight kg (lbs)  0.52 (1.14)
Free Rotation Speed rpm 300
Air Consumtion (No load) m³/min (cfm) 0.25 (8.9)
Noise level dB(A) 83
Vibration m/s² 2.9
Hose Inlet Bushing - Rc 1/4
Hose Inside Diameter mm (inch) 6.3 (1/4)
Applicable Compressor kW 1.5
Capacity Bolt Diameter mm (inch) 10 (3/8)
Maximum Torque Nm 30
Length mm (inch) 263 (10-1/2)
Weight kg (lbs)  1.15 (2.53)
Free Rotation Speed rpm 160
Air Consumtion (No load) m³/min (cfm) 0.25 (8.9)
Noise level dB(A) 89
Vibration m/s² 2.9
Hose Inlet Bushing - Rc 1/4
Hose Inside Diameter mm (inch) 6.3 (1/4)
Applicable Compressor kW 1.5

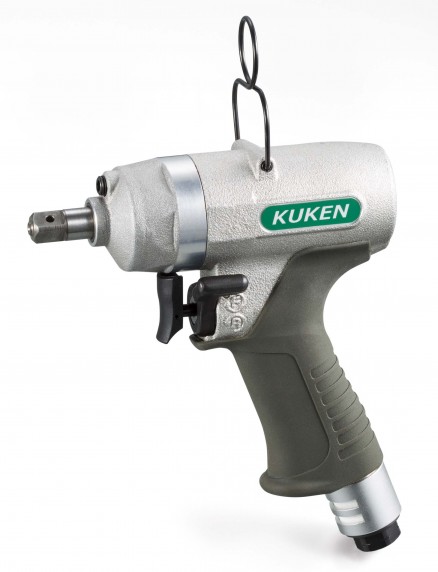

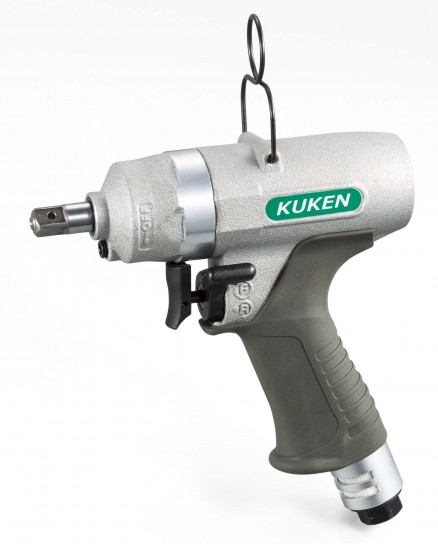

KOW-5 Puls Wrench KOW-6 Puls Wrench





Socket Insert Sq. mm (inch) 9.5 (3/8)
Capacity Bolt Diameter mm (inch) 6-8 (1/4-5/16)
Recommended Torque Range Nm 15-35
Weight kg (lbs) 0.92 (2.0)
Length mm (inch) 141 (5-9/16)
Free Rotation Speed rpm 8000
Air Consumtion (No load) m³/min (cfm) 0.5 (17.7)
Hose Inside Diameter mm (inch) 6.5 (1/4)
Socket Insert Sq. mm (inch) 9.5 (3/8)
Capacity Bolt Diameter mm (inch) 8 (5/16)
Recommended Torque Range Nm 28-56
Weight kg (lbs) 0.98 (2.2)
Length mm (inch) 153 (6-1/16)
Free Rotation Speed rpm 7800
Air Consumtion (No load) m³/min (cfm) 0.6 (21.2)
Hose Inside Diameter mm (inch) 6.5 (1/4)
KOW-7 Puls Wrench KOW-9 Puls Wrench



Socket Insert Sq. mm (inch) 9.5 (3/8)
Capacity Bolt Diameter mm (inch) 8-10 (5/16-3/8)
Recommended Torque Range Nm 40-65
Weight kg (lbs) 1.1 (2.4)
Length mm (inch) 161 (6-3/8)
Free Rotation Speed rpm 6500
Air Consumtion (No load) m³/min (cfm) 0.55 (19.4)
Hose Inside Diameter mm (inch) 6.5 (1/4)
Socket Insert Sq. mm (inch) 12.7 (1/2)
Capacity Bolt Diameter mm (inch) 10 (3/8)
Recommended Torque Range Nm 40-96
Weight kg (lbs) 1.5 (3.3)
Length mm (inch) 174 (6-7/8)
Free Rotation Speed rpm 5500
Air Consumtion (No load) m³/min (cfm) 0.64 (22.6)
Hose Inside Diameter mm (inch) 8.0 (3/8)
The performance figures are at 0.62MPa(Pe) (90P.S.I.) air pressure, and no load.

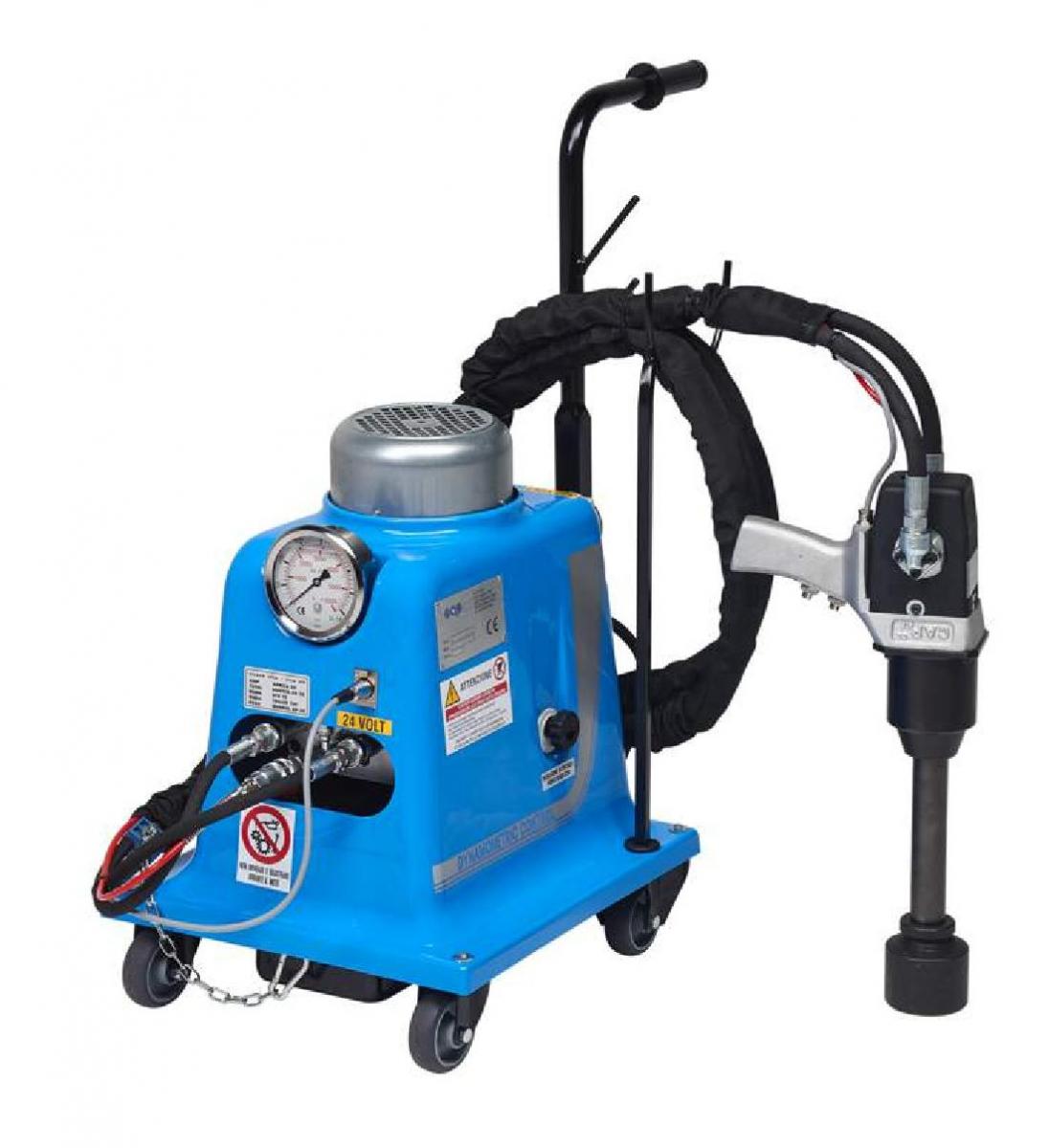

Impact Wrenches with a mobile power source. Perfect solution for off road works and many other applications!

Different models with a total torque range from 200Nm-16000Nm!!!
