Chipping hammers

  • Quickly and efficiently removes rust, scale, paint, tar and concrete from most surfaces
  • Ideal for industrial, maritime and shipboard cleaning and descaling operations
  • Idle protection system, tool will not activate unless contacting work surface
  • S-1000 is over 4-1/2' in length for extended reach applications and operator convenience
  • One-touch chisel installation and removal - NO tools required
  • Vibration: "TEMA-value"= Measured from reality (see front page article).
CH-24 Chipping Hammer ACH-16 Chipping Hammer
Model CH-24
Air Pressure 85 psi (6 bar)
Air Consumption 7.1 CFM
Strokes per minute 4.000 SPM
Shank Size 1/2" square dia.
Hose Size Requirement 3/8" ID
Overall Length 7-1/4"
Weight 3.7 lbs. (1.7kg)
Vibration 16,2m/s²
Accessories Included Curved flat chisel #TP15166-0, threaded adapter - PT3/8" x NPT3/8" , hose nipple 3/8"PT x 3/8"
Video
Spareparts/Exploded view
Model ACH-16
Air Pressure 85 psi (6 bar)
Air Consumption 5.3 CFM
Strokes per minute 6.000 SPM
Shank Size 27/64" round dia.
Hose Size Requirement 3/8" ID
Overall Length 5-3/4"
Weight 2.2 lbs. (1.0kg)
Vibration TEMA=3,94m/s²
Accessories Included Flat chisel #TQ03431-0, threaded adapter - PT3/8" x NPT3/8", hose nipple 3/8"PT x 3/8"
Video
Spareparts/Exploded view

A300 Auto Hammer Chisel S-250 Pneumatic Scaler
Model A-300
Air Pressure 85 psi (6 bar)
Air Consumption 10.6 CFM
Strokes per minute 2.600 SPM
Hose Size Requirement 1/4" ID
Dimension 185 x 160 mm
Weight 3.7 lbs. (1.7kg)
Vibration ≧ 30 m/s²
Accessories Included Bushing R 1/4" x NPT 1/4", hose nipple  R 1/4" x 1/4"
Spareparts/Exploded view
Model S-250
Air Pressure 85 psi (6 bar)
Air Consumption 9.5 CFM
Strokes per minute 2.500 SPM
Size of Chisel chuck 1/2" dia.
Hose Size Requirement 3/8" ID
Length 24-13/16"
Weight 9.0 lbs. (4.1kg)
Accessories Included Scraper #2005, threaded adapter M16 X 3/8NPT
Video
Spareparts/Exploded view

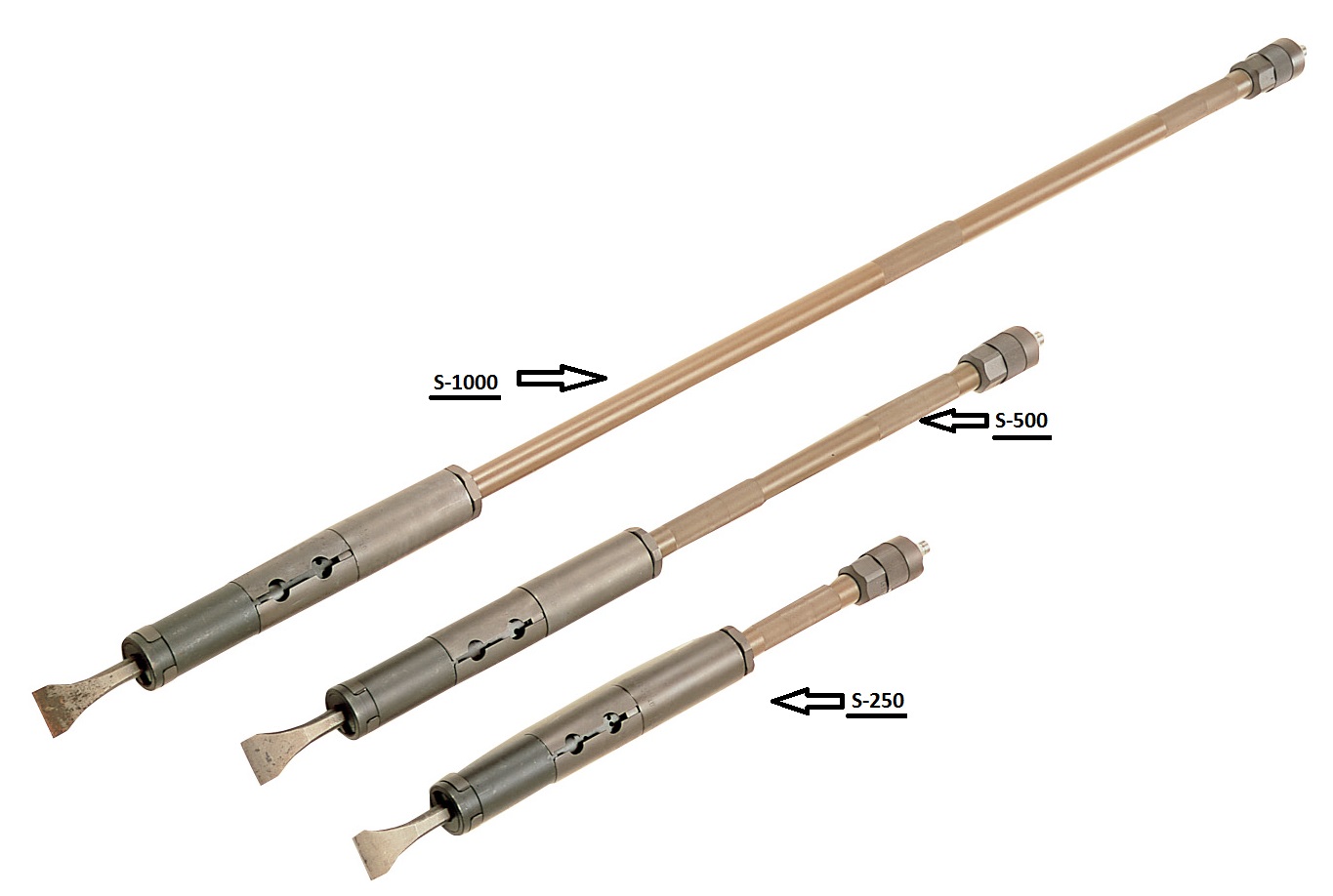

S-500 Pneumatic Scaler S-1000 Pneumatic Scaler
Model S-500
Air Pressure 85 psi (6 bar)
Air Consumption 9.5 CFM
Strokes per minute 2.500 SPM
Size of Chisel chuck 1/2" dia.
Hose Size Requirement 3/8" ID
Length 35"
Weight 10.4 lbs. (4.7kg)
Accessories Included Scraper #2005, threaded adapter M16 X 3/8NPT
Spareparts/Exploded view
Model S-1000
Air Pressure 85 psi (6bar)
Air Consumption 9.5 CFM
Strokes per minute 2.500 SPM
Size of Chisel chuck 1/2" dia.
Hose Size Requirement 3/8" ID
Length 57-7/8"
Weight 13.4 lbs. (6.1kg)
Accessories Included Scraper #2005, threaded adapter M16 X 3/8NPT
Video
Spareparts/Exploded view
