Die grinders and Deburring tool

Ideal for most deburring, finishing and grinding applications
Precision machined with heavy duty spindle and support bearings
Rear exhaust with patented noise reduction system
Suitable for industrial and production applications
Locking throttle lever helps prevent accidental start-up
Accepts most stone-type and rotary carbide burrs with 1/4" shanks
Vibration: "TEMA-value"= Measured from reality (see front page article).

Click on the picture to open up a manual!

HOT NEWS!

BC-005

►Deburring tool, "Push-to-engage" type for better result.

Model	BC-005
Max Air Pressure	87 psi (6.0 bar)
Air Consumption	7.8 CFM (0.22m³/min)
Free Speed	420 rpm
Deburring hole diameter	3mm to 34mm
Thread size of air inlet	Rc 1/8
Dimension	174mm x 39mm
Weight w/o hose	1.65 lbs. (0.75kg)
Accessories Included	Chuck 6 mm Chuck 8 mm Chuck 10 mm (on the body) Suspension Bail Hex. Socket screw Key 2.5 mm Bushing R 1/8 × NPT 1/4
Maximum power	72 W
Sound pressure level	89 dB(A)
Vibration	4.2 m/s²
Video
Pdf-info
Spareparts and exploded view

L-25B

►Die Grinder suitable for industrial and production applications.

Model	L-25B
Air Pressure	85 psi (5.9 bar)
Air Consumption	14.1 CFM (0.4m³/min)
Free Speed	27.000 rpm
Size of Collet Chuck	1/4"
Hose Size Requirement	3/8" ID
Dimension	5-11/32" (136mm x Ø35mm)
Weight w/o hose	1.3 lbs. (0.6kg)
Accessories Included	1/8" chuck sleeve, grinding stones, spanner, air hose, chuck pin
Optional Accessories	3/16" chuck sleeve
Noiselevel	76 dB(A)
Vibration	0.3 m/s²
Video
Manual
Spareparts and exploded view

L-35C

►Die Grinder ideal for rotary carbide burrs.

►Clever construction ensures low vibration.

Model	L-35C *
Air Pressure	85 psi (5.9 bar)
Air Consumption	12.4 CFM (0.35m³/min)
Free Speed	37.500 rpm
Size of Collet Chuck	1/4"
Hose Size Requirement	3/8" ID
Dimension	6-23/32" (171mm x Ø35mm)
Weight w/o hose	1.0 lbs. (0.45kg)
Accessories Included	1/8" chuck sleeve, grinding stone, spanner, air hose
Optional Accessories	3/16" chuck sleeve
Noiselevel	74 dB(A)
Vibration	0.7 m/s², TEMA=1,51m/s²
Video
Manual
Spareparts and exploded view
Important	*Stone type bits: must be safety approved to operate at or above 37.500 rpm

AL-55

►Die Grinder with speed rotation of 56.500 rpm.

Model	AL-55
Air Pressure	85 psi (5.9 bar)
Air Consumption (no load)	6 CFM (0.17m³/min)
Free Speed	56.500 rpm
Size of Collet Chuck	1/8"
Hose Size	1/4"
Dimension	5-1/16" (129mm x Ø22mm)
Weight w/o hose	0.55 lbs. (0.25kg)
Accessories Included	2 spanner wrenches, mounted grinding stone,mounted wheel 5x13x3
Noiselevel	78 dB(A)
Vibration	0.45 m/s²
Video
Manual
Spareparts and exploded view

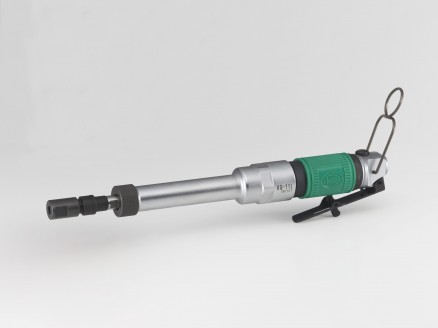

KG-11L

►Made in Japan, by Kuken-tools.

►Two hands die grinder for bigger accessories.

Model	KG-11L
Air Pressure	0.62 MPa (6.2 bar)
Air Consumption (no load)	15.2 CFM (0.43 m³/min)
Free Speed	18.000 rpm
Size of Collet Chuck	3 mm or 6 mm
Hose Size	1/4" ID
Dimension	Length: 320 mm
Weight w/o hose	1.1 kg
Noicelevel	- dB(A)
Vibration	- m/s²
Spareparts and exploded view
