Cevisa Beveling from Spain

When hand beveling no longer is a suitable solution, then Cevisa has good reliable machines for all your applications. Tendek Ky is the official distributor for Finland.

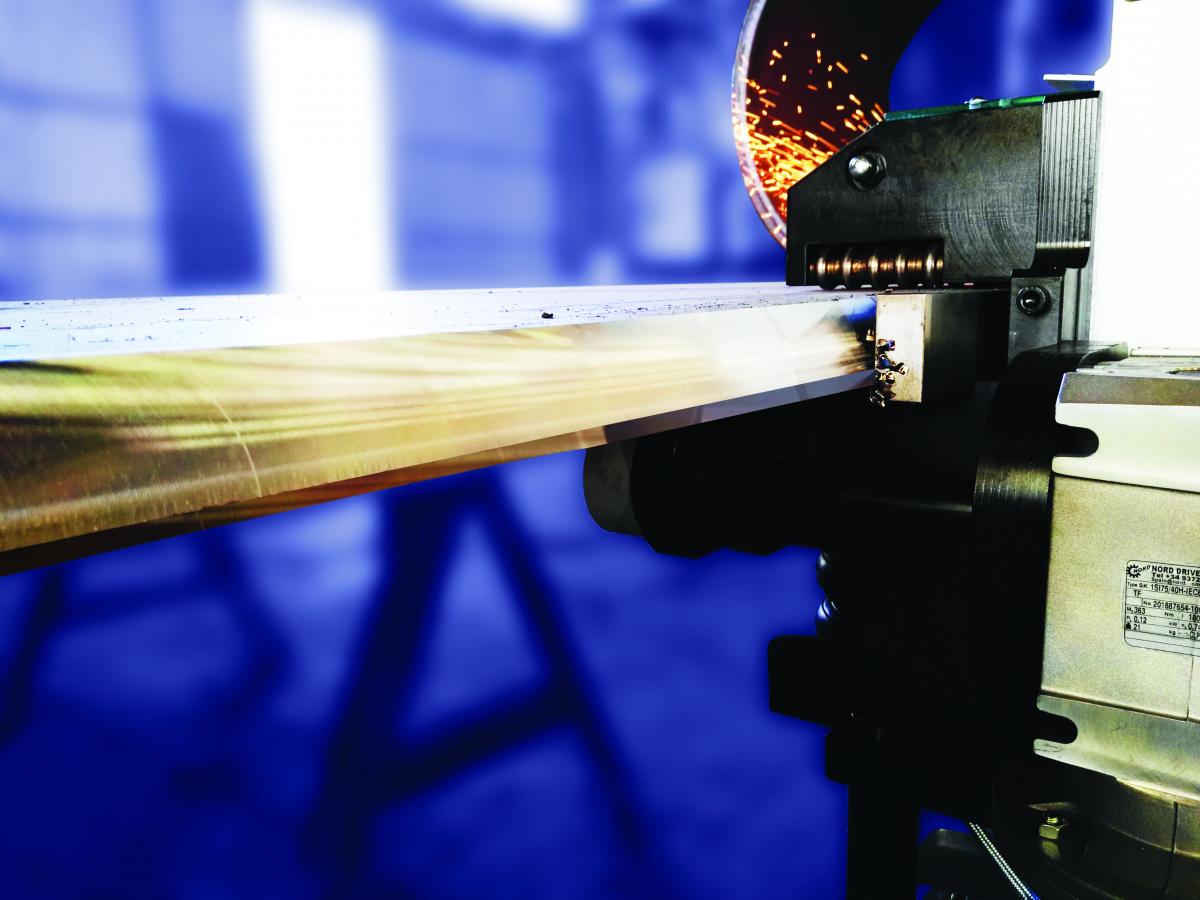

Biggest first, the CHP-60G, followed by the rest of the program and the specifications:

CHP-12	Specifications:
	Chamfer angel: 22,5°- 25°- 30°- 35°- 37,5°- 45° Chamfer depth: 0 - 12 mm No-load speed: 1 400 rpm Plate thickness: 6 - 40 mm Plate width, minimum: 55 mm (There is special devices for minimum plate width of 25,32 and 40 mm.) Chamfering speed: 2,6 m/min Motor: 3 hp Wheight: 65 kg Material: Mild steel, Stainless steel
CHP-12G	Specifications:
	Chamfer angel: 22,5°- 25°- 30°- 35°- 37,5°- 45° Chamfer depth: 0 - 12 mm No-load speed: 1 400 rpm Plate thickness: 6 - 30 mm Plate width, minimum: 55 mm (There is special devices for minimum plate width of 25,32 and 40 mm.) Pipes, minimum inner Ø: 100 mm Chamfering speed: 2,6 m/min Motor: 3 hp Wheight: 110 kg Material: Mild steel, Stainless steel
CHP-12G-REV	Specifications:
	Chamfer angel: 22,5°- 25°- 30°- 35°- 37,5°- 45° Chamfer depth: 0 - 12 mm No-load speed: 1 400 rpm Plate thickness: 6 - 30 mm Plate width, minimum: 55 mm (There is special devices for minimum plate width of 25,32 and 40 mm.) Pipes, minimum inner Ø: 100 mm Chamfering speed: 2,6 m/min Motor: 3 hp Wheight: 250 kg Material: Mild steel, Stainless steel
CHP-21G	Specifications:
	Chamfer angel: 22,5°- 25°- 30°- 35°- 37,5°- 45° Chamfer depth: 0 - 20 mm No-load speed: 1 400 rpm Plate thickness: 9 - 50 mm Plate width, minimum: 85 mm Pipes, minimum inner Ø: 150 mm Chamfering speed: 1,7 m/min Motor: 4 hp Wheight: 370 kg Material: Mild steel, Stainless steel
CHP-21G-INV	Specifications:
	Chamfer angel: 22,5°- 25°- 30°- 35°- 37,5°- 45° Chamfer depth: 0 - 20 mm No-load speed: 1 400 rpm Plate thickness: 9 - 50 mm Plate width, minimum: 85 mm Pipes, minimum inner Ø: 150 mm Chamfering speed: 1,7 m/min Motor: 4 hp Wheight: 430 kg Material: Mild steel, Stainless steel

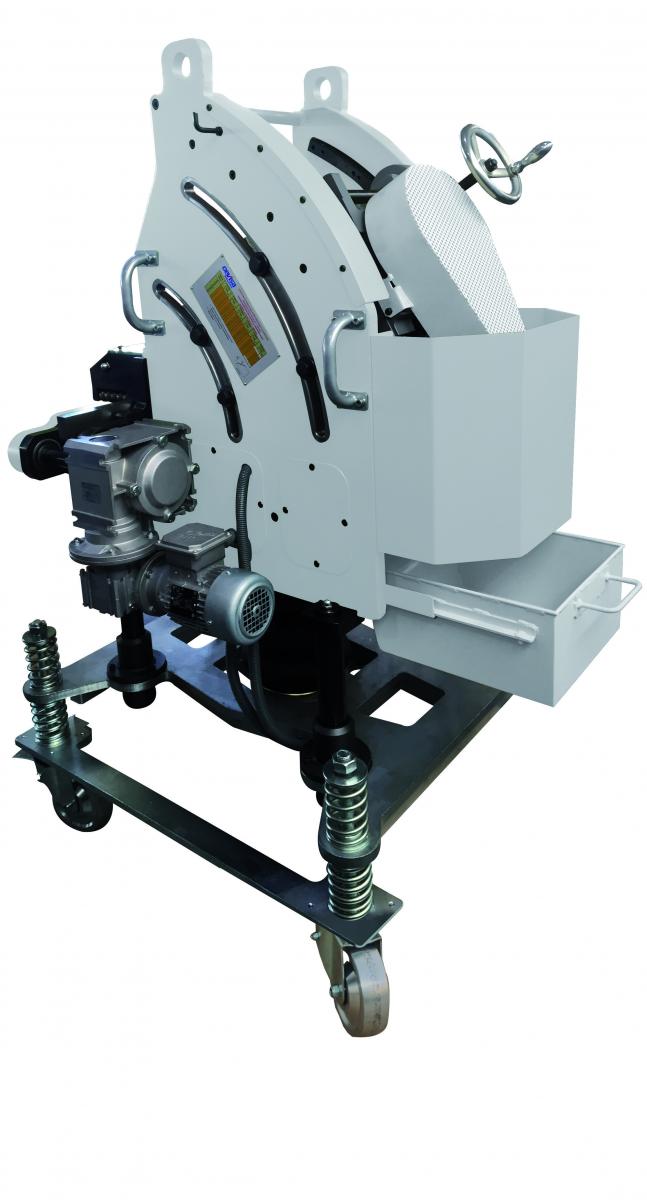

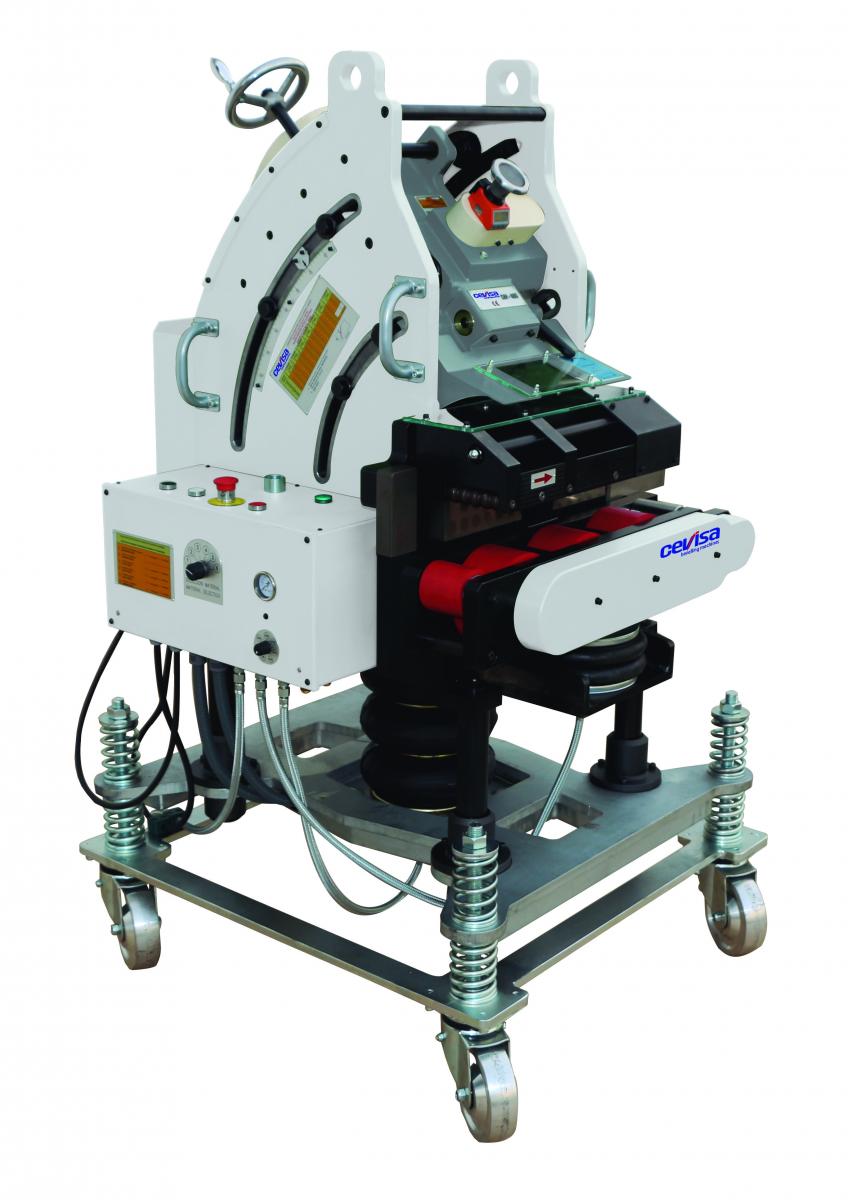

CHP-60G	Specifications:
	Chamfer angel: 15°- 70° Chamfer depth: 0 - 60 mm (28mm/run) Milling head: Ø80 mm Inserts: 7 pcs(ADMX-1606) Chamfering speed: 500 mm/min Plate thickness: 10 - 100 mm Plate width, minimum: 100 mm Working height: 760 - 940 mm Motor: 5 hp - 3,8kW Weight: 800 kg Working pressure: 4 bar Material: Mild steel, Stainless steel and duplex
